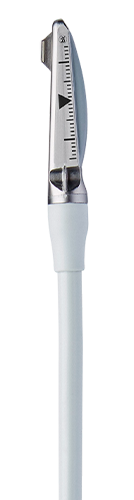

Rob12C4 (9096) Robotic Transducer

The Rob12C4 robotic transducer enables unique access to complex organs and difficult-to-access anatomy during robotic-assisted procedures.

  • Small and compact, the drop-in linear curved array transducer enables a wider field of view for faster kidney navigation
  • The highly flexible 3.5 m cable and small profile help reach difficult-to-access anatomy
  • The specially designed fin can be grasped by the robotic arm, ensuring maximum control and organ contact
  • Advanced transducer connector designed for noise reduction in the ultrasound image and one-handed operation
  • Unique, fully immersible transducer for easy sterilization
  • Rob12C4 has not been licensed by Health Canada.

Specifications

Applications
Intraoperative, Urology
Frequency Range
12-4 MHz
Focal Range
10 – 80 mm
Contact Surface
9 x 33.2 mm
Scanning Modes
B, M, CFM, Doppler, Tissue Harmonic Imaging, Contrast Imaging, Strain Elastography
Compatible Ultrasound Systems
bk5000, bkActiv
Image Field
Sector 36º
Weight
25 g

Reprocessing Information

View Reprocessing Information
