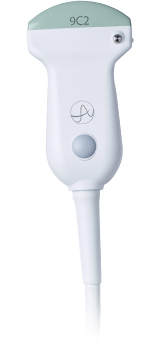

9C2 (9002) High Frequency Curved Array Transducer

The High Frequency Curved Array 9C2 is a multifrequency, broad bandwidth transducer. Wide scanning angle and penetration depth makes it the ideal choice for general abdominal and obstetric examinations.

  • Broad bandwidth gives excellent image quality
  • Activate the transducer and freeze, store and print images with one press of the integrated Smart ButtonTM
  • Ergonomic design improves operator comfort
  • Advanced transducer connector is designed for noise reduction in the ultrasound image and one-handed operation
  • Perform quick,reliable puncture and biopsy procedures with our reusable needle guide
  • Unique, fully-immersible transducer for easy sterilization


Abdominal, Fetal, Musculoskeletal, Pediatric, Peripheral Vascular, Urology
Frequency Range
9-2 MHz
Focal Range
20 - 160 mm
Contact Surface
54 x 10 mm
Scanning Modes
B, M, CFM, Doppler, Tissue Harmonic Imaging, Strain Elastography
Compatible Ultrasound Systems
bkSpecto, bk3000, bk5000, bkActiv
Image Field
Sector: 74º. Expanded Sector: 104°
150 g
